VMS-TS Balancing Machine
What has proven highly successful in our horizontal balancing machines also benefits users of the VMS-TS: the machine is built using a combination of mineral casting and aluminum profile construction.
The interaction of these modern engineering materials offers numerous advantages and has been intelligently integrated into the VMS-TS design. While the mineral cast base provides a heavy, vibration-damping foundation for maximum precision, the aluminum profiles enable a lightweight and flexible machine structure.
This combination creates the ideal conditions for a low-vibration and highly accurate balancing process, even for larger or extra-long tools and rotors.
The machine design also allows the VMS-TS to be configured as a crane-hook balancing machine. Simply position the machine, level it, connect compressed air and power, and balancing operations can begin immediately. No foundation and no additional floor anchoring are required. This provides significantly greater flexibility whenever machine layouts or production setups need to be changed.
The automatically opening and closing vertical sliding door, equipped with integrated safety edge protection, and the transparent protective enclosure with safety interlock system ensure maximum operator safety and ease of use.
The measuring unit (Quick Start Module) is positioned perfectly within the operator’s field of view, enabling simple, intuitive, and efficient operation.
The TS software features a user-friendly operating concept with clear displays and intuitive symbols optimized for Windows PCs equipped with touchscreen functionality (Windows 10 or later). Comprehensive user assistance functions further simplify operation, allowing users to quickly unlock the full performance potential of the VMS-TS.The balancing software features 7 balancing methods as standard.
VMS-TS Balancing Machine with #100 Spindle
For Tools & Rotors < 50 kg
This vertical balancing machine is a complete system for balancing tools and rotors, even for larger or extra-long parts. All that is required is the appropriate clamping adapter, allowing balancing operations to begin immediately.
The balancing machine is for both single-plane and two-plane balancing, enabling the precise balancing of a wide variety of tool and rotor geometries.
Balancing to an optimal quality grade of up to G 0.1, or detecting an imbalance of less than 0.1 g, can be achieved easily and reliably.
The pneumatic clamping mechanism pulls the tool or rotor into the clamping adapter under actual operating conditions, ensuring a highly reproducible seating position within the adapter.
A wide range of standard adapters are available, including interfaces for HSK 40–125, Polygonal Shank C4–C8 (PSC), SK 30–50, and BT 30–50. Clamping adapters equipped with collets ranging from 6–25 mm and expanding mandrels ranging from 8–80 mm are also available.
Technical data VMS-TS100: for tools & rotors < 50kg
Power supply 230V, 50Hz (16A)
Power input max. 6 kVA
Speed range 200...2500-1 ±1min-1
Spindle-Ø 90mm
Workpiece-Ø up to approx. 720mm
Workpiece length up to approx. 750mm
Operation Quickstart Operating Module and Windows PC
Measuring accuracy <0,5gmm

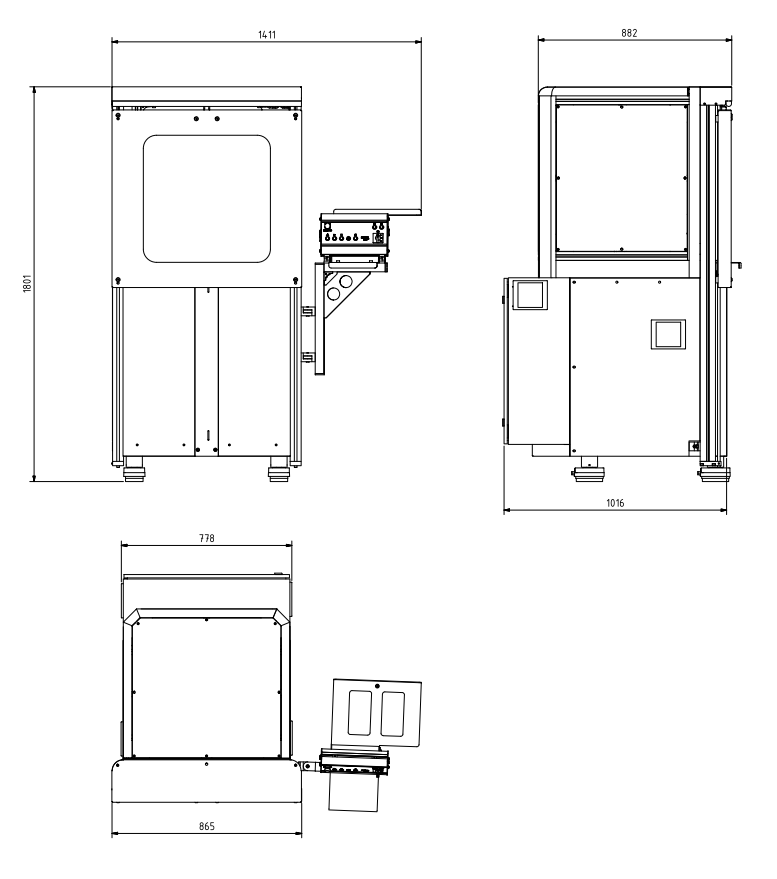

Dimensions WxHxD 1017 mm / 781 mm / 1833 mm L / W /H
Weight approx. 850kg
Temperature (operating): 0°C...+50°C
Temperature (storage): -10°C...+60°C
Humidity: 20%...50% rel. humidity
Operating pressure min. 6.5 bar max. 8 bar
Interfaces 2x RS232
