Stock Solid Carbide Drills
NO: SuperV-X series 3~12xD
Specifications: 51784 | 51786 | 51791 | 51792
Description: 3xD | 5xD | 7xD | 12xD
Download
ADOBE PDF

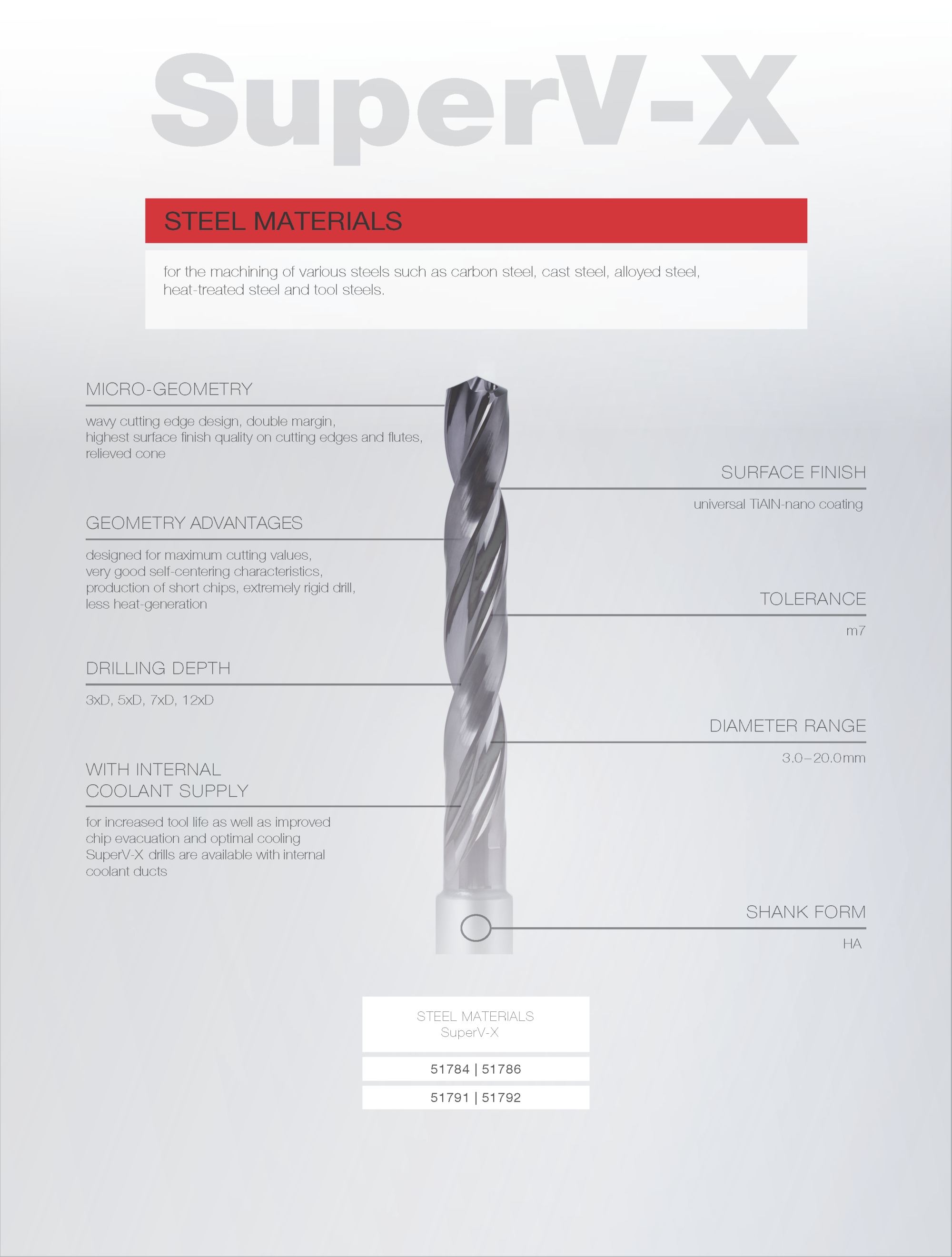

The new SuperV-X drills are especially developed for steel machining with a very high performance. Combined the optimization of all tool parameters this new carbide drill enables highest feed rates and metal removal rates.



Features:

- double margin

- relieved cone, concave cutting edge design

- polished flutes

- honed cutting edges to the nearest micron

- negative chamfer alongside the cutting edge

- new developed carbide grade (less prone to breakage)



Your Advantages:

- improved chip flow and chip evacuation

- very high feed rates and metal removal rates

- exceptional performance in all steel materials

- improved hole straightness and exceptional hole quality

- re-sharpening effect due its newly developed carbide structure
