| NO： | SuperV-AL series 3~12xD |
| Specifications： | 71790 | 71791 | 71792 | 71793 |
| Description： | 3xD | 5xD | 7xD | 12xD |

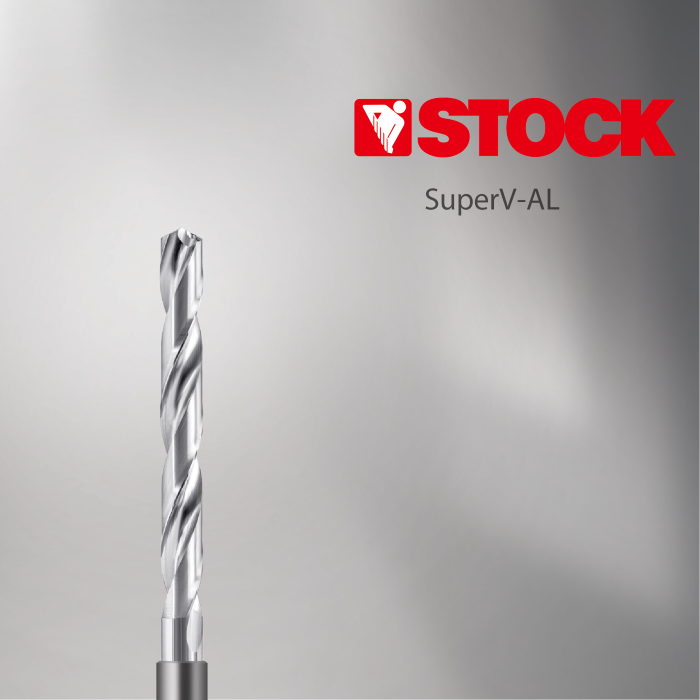

This newly developed high-penetration carbide drill distinguishes itself thanks to an ideal geometry with high surface finish qualities in the web thinning, front face and clearance rake areas. Micro-treated cutting edges and corners complement the point geometry of the SuperV-AL and ensure perfect cutting behavior. Low process temperatures prevent the formation of built-up edges when machining non-ferrous metals. When machining in such materials, chip formation with chip evacuation are both of vital importance. With this newly developed carbide drill optimal chip formation is achieved immediately at the cutting edge in the entire material range – from tough aluminium wrought alloys to aluminium cast alloys, reliable chip evacuation is achieved.
Features:
- relieved cone
- concave cutting edge design
- super surface finish
Your Advantages:
- extremely high feed rates and metal removal rates
- low process temperatures and cleaner cuts
- no Built-Up Edge
