| NO： | SuperV-X VA series 3~12xD |
| Specifications： | 51743 | 51745 | 51747 | 51749 |
| Description： | 3xD | 5xD | 7xD | 12xD |

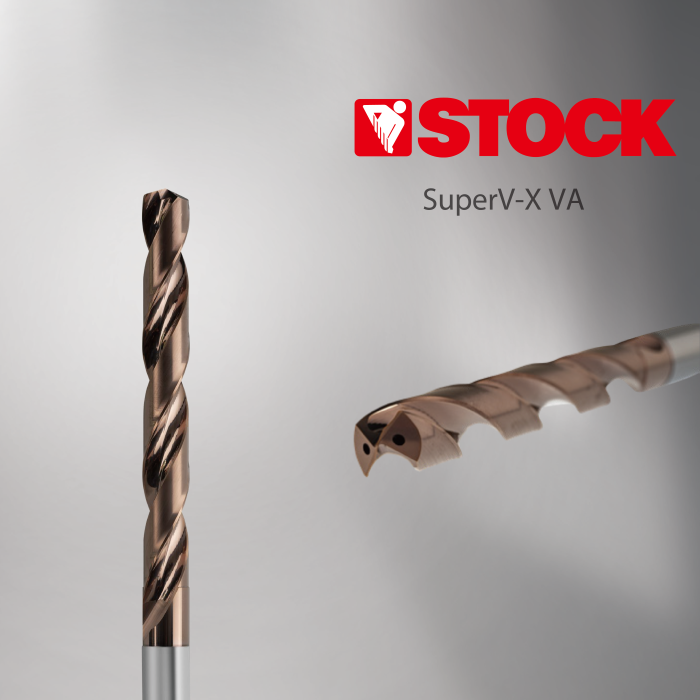

The STOCK SuperV-X VA is a new high-performance carbide drill suitable for machining a variety of special materials used in the aerospace and medical industries, including stainless steel, titanium alloys, and other special alloys. This drill achieves superior machining performance through an optimal combination of tungsten carbide, geometry, and next-generation coating specifically tailored for these materials. This significantly improves hole accuracy, tool life and process safety, and effectively reduces machining time.The SUPERV-X VA drill effectively reduces cutting forces, boosts machining efficiency, and lightens workpiece load, ensuring maximum productivity.
Features:
- 4 facet point
- main cutting edge form concave
- special shaped flute geometry
- new developed very hard TiSiN+ coating [HiPIMS]
- extremely smooth tool surface (no droplets)
- honed cutting edges to the nearest micron
Your Advantages:
- very high feed rates in ISO M, S materials
- improved chip breaking behavior in ISO M, S materials
- chips will not stick to the tool, no BUE
- excellent chip removal, no chip jamming in the flute
- reduced machining times, very long and reliable tool life
