| NO： | SuperV-T AL series 15~25xD |
| Specifications： | 71764 | 71765 | 71766 |
| Description： | 15xD | 20xD | 25xD |

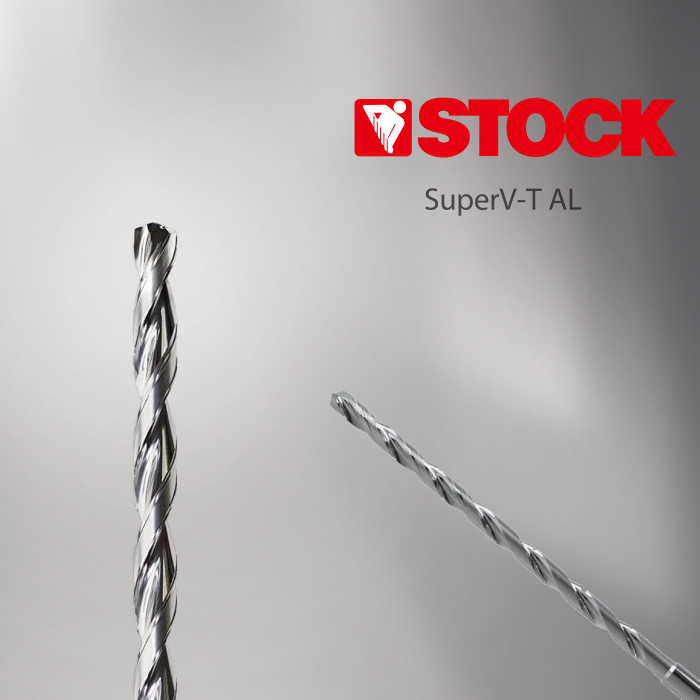

The SuperV-T AL is a specialized solid carbide deep-hole drill engineered for high-performance aluminium machining, offering superior cutting speeds, extremely long tool life, and no material adhesion. The drill has polished surfaces with the lowest Rz values for the flute and web thinning. This reduces the adhesive effect of the aluminum significantly. The special flute design with two different helix angles ensures a considerably shorter chip travel. In addition, the high surface quality of the flute offers the chips low friction resistance. The SuperV-T AL evacuates the optimally formed chips efficiently from deep holes without problem. STOCK offers 3 different standard lengths, i.e. 15xD, 20xD & 25xD tools from stock.
SuperV-T AL is used for machining a wide range of components, such as cylinder heads, hydraulic blocks and various molded parts. This deep hole drill is delivered with bright surface finishes as standard but can be coated optionally.
Features:
- 4 facet point
- wavy cutting edge design
- super surface finish
Your Advantages:
- extremely high feed rates and metal removal rates
- low process temperatures and cleaner cuts
- no Built-Up Edge
